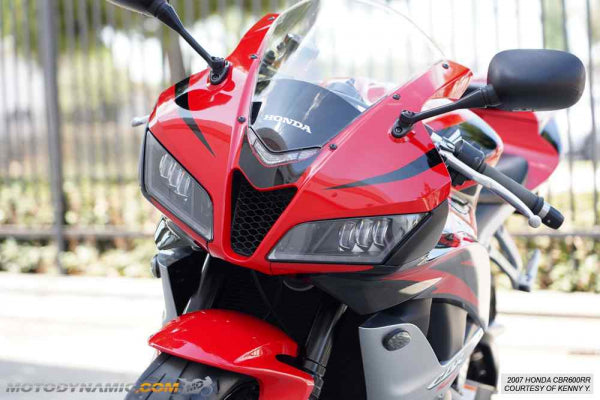

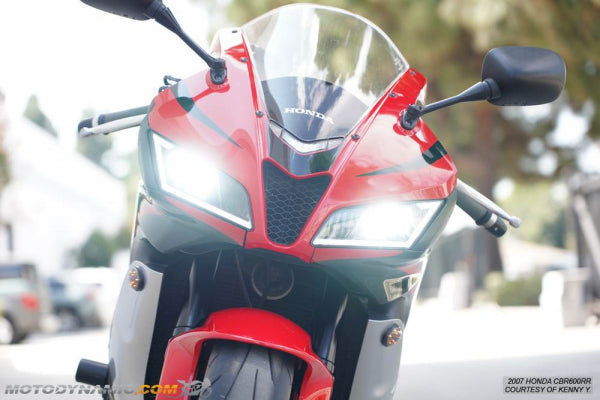

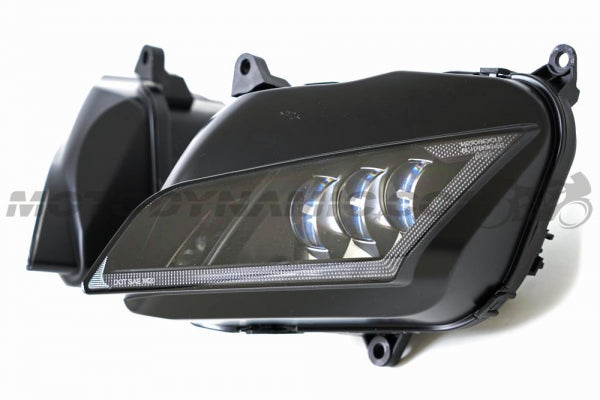

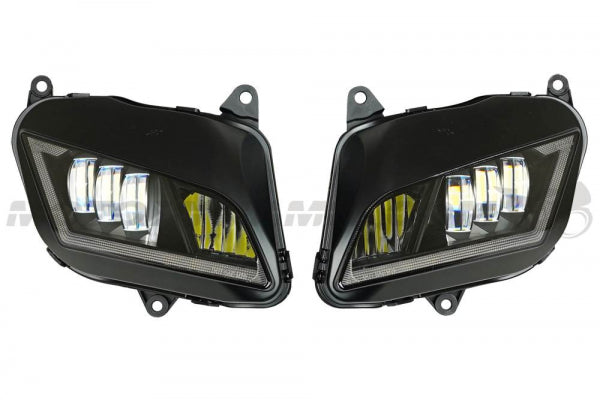

2007-2012 Honda CBR600RR Full LED Projection Head Light Assembly with DRL

Features:

• The only aftermarket CBR600RR headlight tested in photometric laboratory, meeting and exceeding SAE/DOT requirements for US Federal Motor Vehicle Safety Standards (FMVSS) 108 for motorcycle lighting
• 6 LED projector low beams, 2 LED reflective high beams and 2 LED DRL light bars

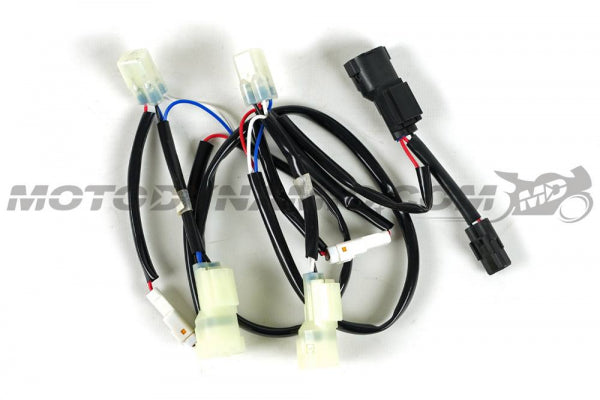

• 100% direct bolt-on and plug and play with included subharness, no modification needed
• Installation instructions included, knowledgeable installation highly recommended
• Warranty: 1 Year

Optional intelliflash module information: When installed, the intelliflash module allows for both running light and turn light functionality on the LED DRL light bars. The intelliflash module is plug and play for USA and similar models (models that only have the 3 wire plug connector on the front turn signals).

>>>DOWNLOAD QUICK INSTALLATION INSTRUCTIONS HERE<<<

Detailed specifications below:

Specifications: Dimensions (each side): 10" x 6-3/4" x 7-3/4" (Width x Height x Depth). Weight (both): 4.50 lbs (2.04 kgs)

Materials:
Lens: PC

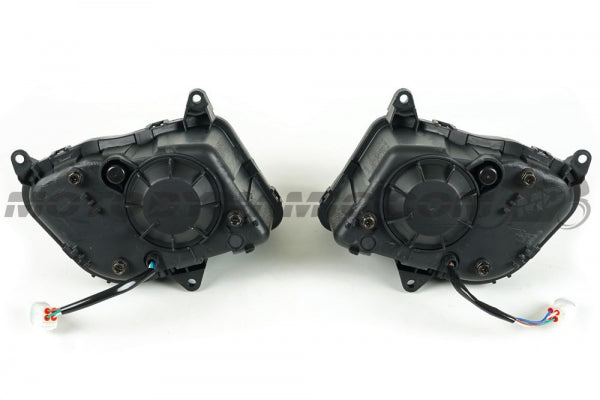

Rear housing: PP
LED heatsink: Aluminum

LED Specs:

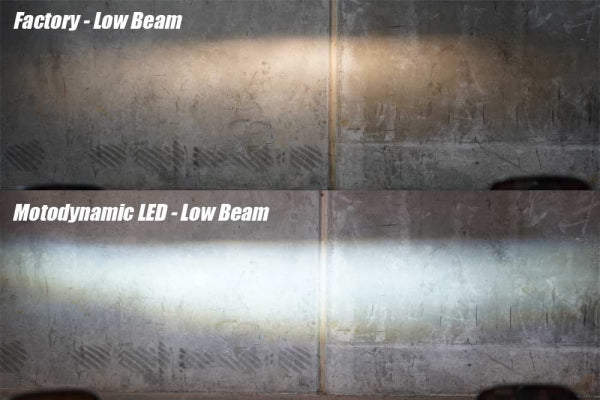

Low Beam (Projection):
Wattage: 27.6W
Current Draw: 2.08A @13.8V
Lumens: 2600
Color Temperature: 6500K +/- 3% Tolerance

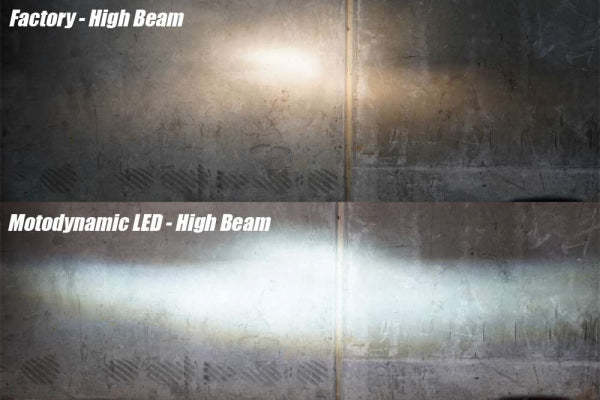

High Beam (Reflective):
Wattage: 30.6W
Current Draw: 2.36A @ 13.8V
Lumens: 3000
Color Temperature: 6100K +/- 3% Tolerance

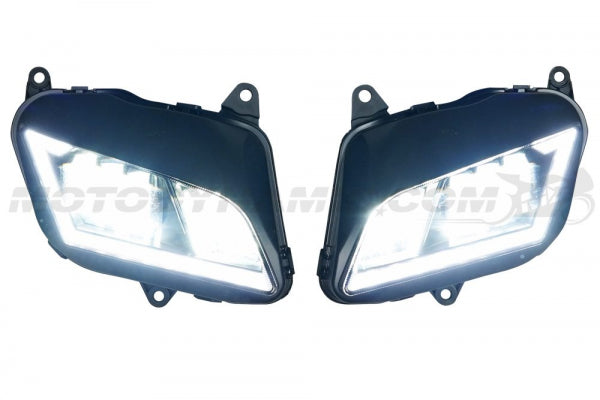

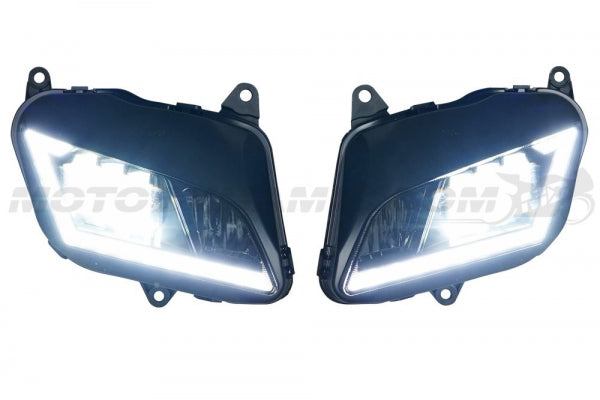

Daytime Running Light (Light Bar):
Wattage: 12W
Current Draw: 0.90A @ 13.8V
Lumens: 360
Color Temperature: 6000K +/- 3% Tolerance

Full step-by-step installation video:
